This page gives a recipe for how to write and test your own plugin; it tells you the "How" of writing plugin. The page Tour Of A Simple Plugin covers some of the "Why" and "What" parts of a simple plugin and Tour Of The Delay Plugin covers periodic computations. This page will begin by showing you how to make your own copy of the mycount plugin. Then, it leads you through the steps need to make a new plugin that is a small extension of the mycount plugin. In the example commands below, you will need to particularize the commands for your situation.

We assume below that you have logged into the onlusr host and that you are in your home directory. We will compile your own version of the mycount plugin. This should be straightforward since you will be starting with the source code of a predefined plugin and therefore should not be getting any compiler errors.

1. Make your own plugin source code directory.

	mkdir npr-plugins		# your NPR plugin directory
	cd npr-plugins
	mkdir mycount			# your own mycount plugin directory

2. Now, get the three files mycount.c, plugin_helpers.h and Makefile from the mycount directory.

cd mycount
cp  ~onl/npr/plugins/mycount/{mycount.c,plugin_helpers.h,Makefile} .

3. Compile the plugin, saving stdout and stderr in the file make.log. (This will take about 1 or 2 minutes.)

	make > make.log 2>&1		# bash
	make >& make.log		# csh

4. See if there were any errors or warnings.

	egrep 'error|warn' make.log

You should see about 10 lines that say there are "0 error(s)".
5. Briefly look at the output from the compile step using a command like more, less or your favorite editor (not shown).

	more make.log

There should be files in the subdirectories list/ and uof/. This is an indication that object files and executables were created by the make command. The contents of the uof/ directory should look like this when you enter the command ls uof:

onlusr> ls uof
mycount.uof         mycount.uof_1_2800  mycount.uof_2_2805  mycount.uof_4_2800
mycount.uof_0_2800  mycount.uof_1_2805  mycount.uof_3_2800  mycount.uof_4_2805
mycount.uof_0_2805  mycount.uof_2_2800  mycount.uof_3_2805

The next section will show you how to load and test this plugin. This plugin will use eight hardware-supported threads: six packet handling threads, one control message thread and one periodic computation thread. Actually, the periodic computation thread doesn't do anything useful. The underlying ONL plugin framework used by the six packet handling threads ensure that packets are handled in FIFO order even though the threads execute concurrently. The concurrency occurs because of the structure of the main() function and the settings in the Makefile. The details are described in the next tutorial page Tour Of A Simple Plugin.

Now you need to test your own mycount plugin. We'll use the 1-NPR configuration (above). We will install a filter at input port 1.0 that directs traffic to a mycount plugin running on plugin microengine 0. Everytime a meta-packet arrives to the plugin, the plugin will increment its two packet counters and then forward the meta-packet to output port 1 for transmission. If the plugin works, we should be able to send packets through the plugin at a low rate using the ping command and see that:

• The value of PluginCounter 0 is charted properly; and
• The internal plugin counters retrieved by sending a =count message to the plugin are increasing properly.

1. Commit a 1-NPR configuration with hosts connected to ports 1.0 and 1.1 (i.e., n1p0 and n1p1). Use default routing at all of the input ports.


2. Verify that you can send packets from n1p0 to n1p1 by logging into n1p0 and issuing the ping command:

	$n1p0> ping -c 5 n1p1

3. Tell the RLI where your personal plugin directory is located.

Note that even though there is a predefined mycount plugin directory at ~onl/npr/plugins/mycount/, we will be putting our personal version in a subdirectory of our home directory; i.e., ~/npr-plugins/mycount/.


• RLI Window:
  Select the center of the NPR icon: NPR => Plugin Table

  The NPR.1 Plugin Table will appear.



• Plugin Table:
  Select Edit => Add Plugin Directory.

The Add Plugin Directory window will appear.

• Add Plugin Directory Window:
  Enter the location of the directory that will contain all of your NPR plugin subdirectories.

Note: The pathname should be the full pathname. For example, if I put the mycount source code in the directory /users/MYLOGIN/npr-plugins/mycount/, I would enter: /users/MYLOGIN/npr-plugins/.



4. Install your own mycount plugin into plugin ME 0.

   If you now select Edit => Add Plugin in the Plugin Table, the RLI should display all predefined plugins as well as the plugins in your personal plugin directory.


• Plugin Table:
  Select Edit => Add Plugin => /users/MYLOGIN/npr-plugins => mycount.

An incomplete entry into the Plugin Table appears. Usually, the microengine number (second) field contains the wrong value.
Note: The figure (right) has been edited to reduce the image footprint. It shows that there are only two predefined plugins (mycount and stringSub). In fact, you will see over 10 predefined plugins if you are following these steps.

• Enter 0 in the microengine number field.

We could have chosen any plugin microengine number (0, 1, 2, 3, or 4).



5. Install a filter at input port 1.0 to direct all packets to the plugin and then on to output port 1.1.

• Filter Table Window:
  Select Edit => Add Filter.

  A default filter table window will appear.

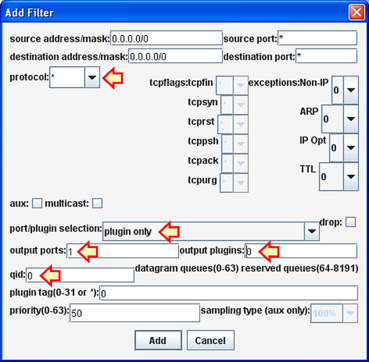

• Add Filter Window:
  Add or change the fields shown to the right.
  • protocol: Select * since we want to match any protocol.
  • port/plugin selection: Select plugin only
  • output ports: Enter 1
  • output plugins: Enter 0
  • qid: Enter 0
  • Select Add

All packets coming into port 1.0 will first be directed to plugin ME 0 (output plugins: 0) and then move on to a datagram queue at output 1 (qid=0 indicates that we will use a hash function that maps to one of the queues numbered from 0 to 63).




6. Verify that you can still send packets from n1p0 to n1p1 by issuing the ping command from host $n1p0.

	$n1p0> ping -c 5 n1p1

7. Send a message to the plugin to get the packet count.

• Plugin Table:
  Select Edit => Send Command to Plugin.

A dialogue box should appear.

• Dialogue Box:
  Enter the command g.

A command log window should appear with a line containing the output shown right. The number corresponds to the value of the plugin variable pkt_count. Since you just sent five ping packets from host $n1p0 spaced one second apart, the plugin should have seen five packets (pkt_count = 5).



8. Create a chart to monitor the absolute value of PluginCounter 0 on ME 0.


Recall that the mycount plugin keeps the packet count in both the pkt_count variable and PluginCounter 0. The difference is that the value of PluginCounters is visible for charts through the NPR menu item Monitoring => PluginCounter.

• Add a new monitoring display.
  RLI Window: Select Monitoring => Add Monitoring Display
• Add PluginCounter 0 to the chart.
  Select NPR.1 => Monitoring => PluginCounter

The Add Parameter dialogue box will appear.



• Fill out the Add Parameter dialogue box.
• microengine: 0
• counter: 0
• secs: 1
• rate: Leave the box unchecked.

The absolute value of PluginCounter 0 will be displayed. It will start at 0 and increment for each packet received by the plugin.



9. Send a message to the plugin to zero the two packet counters pkt_count and PluginCounter 0.

• Plugin Table:
  Select Edit => Send Command to Plugin.
• Dialogue Box:
  Enter the command z which stands for zero counters.

The PluginCounter 0 chart will show that the value of the counter is now 0. You can verify that the pkt_counter counter has been zeroed by sending the g command to the plugin.



10. Tell the RLI where to record debug messages.

We will now test the plugin debug message facility. Debug messages are recorded in a log file specified by the user if the user tells the RLI where to record debug messages and the plugin calls the onl_api_debug_message() function. In the mycount plugin, the onl_api_debug_message() function is only called if the debug_on variable is 1 (the default value).


• RLI Window:
  Select NPR.1 => Configuration => Plugin Debugging.

A Send Command PluginDebugging dialogue box appears.

• Dialogue Box:
  Enter the full pathname or partial pathname of a file where you want debug messages logged. The file must be located in your home directory. For example, both /users/MYLOGIN/debug.log and debug.log refer to the same file. In the case of debug.log, the RLI prepends the pathname of the home directory to the name.

Note 1: The RLI does not understand shell metacharacters (e.g., "~", "."). So, the RLI will reject ~/debug.log.
Note 2: There may be a small time lag between the time that the message is generated and when it appears in the log file since the file is on a remotely mounted file system on most ONL hosts.



11. Send some more ping packets from n1p0 to n1p1 and look in the debug message log file.

The log file shows that five packets were handled by the plugin and that the messages were logged about every 1 second. Notice that the packet numbers are preceded by the character 'x' which indicates that the number is a hexadecimal number.



12. Tell the plugin to stop outputting debug messages.

• Plugin Table:
  Select Edit => Send Command to Plugin.
• Dialogue Box:
  Enter the command d which is the toggle debug command.

The value of the plugin variable debug_on will change from 1 to 0 so that the plugin will no longer attempt to log debug messages.

• If you send some more ping packets from n1p0 to n1p1, you will see PacketCount 0 increasing as expected in the packet count chart. But there will be no new additions to the debug.log file until we toggle the value of the debug_on variable.


13. Tell the plugin to resume outputting debug messages.
• Plugin Table: Select Edit => Send Command to Plugin.
• Dialogue Box: Enter the command d which is the toggle debug command.

The value of the plugin variable debug_on will change from 0 back to 1 so that the plugin will resume logging debug messages.

• If you send some more ping packets from n1p0, and then look at the debug.log file, you will see new lines have been added to the log.

We now address the issue of really creating your own plugin. This section shows you that the mycount Makefile needs to be updated to reflect the name of the new plugin. The next section will lead you through making a few changes to the mycount source code.

• Make the plugin directory for zzz. And get the three files mycount.c, plugin_helpers.h and Makefile from your mycount directory and rename the mycount.c file to zzz.c.

	cd ..					# the root plugin directory
	mkdir zzz				# create the directory for zzz
	cp ./mycount/mycount.c zzz/zzz.c	# copy and rename the .c file
	cp ./mycount/plugin_helpers.h zzz	# copy the plugin_helpers.h file
	cp ./mycount/Makefile zzz		# copy the Makefile file

• Change all occurrences of the name mycount to zzz in the Makefile file. You will need to use your favorite editor to do this. So, we do not give you an example. But there should only be two lines that need to be changed. They look like this:

	NAME=mycount
	...
	SRCS=mycount.c

But they should be changed to:

	NAME=zzz
	...
	SRCS=zzz.c

• Compile the plugin, saving stdout and stderr in the file make.log. (This will take about 1 or 2 minutes.)

	make > make.log 2>&1		# bash
	make >& make.log		# csh

• See if there were any errors or warnings.

	egrep 'error|warn' make.log
	more make.log			# for more details

You should see about 10 lines that say there are "0 error(s)". If not, then, you made a mistake.
Note: The only mistake that might occur is if you did not properly change the Makefile to refer to the zzz plugin instead of the mycount plugin.
• Follow the same steps as above for testing your mycount plugin but replacing mycount with zzz.

Are you still awake?

Now, let's make a few simple modifications to the zzz plugin:

• Create a new variable total_count that is like pkt_count but is never zeroed except during initialization; i.e., the 'z' command has no effect on the value of total_count.
• Change the control message 'g' so that it returns the values of both pkt_count and total_count.
• Output a debug message any time that the value of total_count is incremented to a value that is evenly divisible by 10; e.g., 10, 20, 30, etc.

• In the handle_msg() function, you have to put the values of both pkt_count and total_count into the same control message.
• In the handle_msg() function where you zero pkt_count, you should NOT zero total_count.

In the explanation to follow, you will see the following examples that are specific to the IXP programming environment (and therefore, may appear unusual) and to the ONL plugin framework:

• __declspec(shared gp_reg):
  Variable declarations are augmented by attributes related to the memory hierarchy and multithreaded data sharing. For example, "__declspec(shared gp_reg) int pkt_count" declares the variable pkt_count to be an integer that is shared between threads and should be stored in a general-purpose register.
• strcat_lmem():
  There are functions that require that the parameters are allocated to a specific memory type. For example, "strcat_lmem()" is the standard strcat() function found in libC but requires that its parameters be from local memory; i.e., it is memory hierarchy aware.
• onl_api_...():
  Function names beginning with "onl_api_" are ONL wrapper functions that augment the standard functions provided to the IXP programmer.
• helper_...():
  Function names beginning with "helper_" are our own personal wrapper functions that augment the ONL wrapper functions. Some of these functions may be included in the ONL plugin framework at a later time.

The Global Variable Changes

The only change required here is to add the declaration of the new variable total_count.

	// my global declarations
	__declspec(shared gp_reg) unsigned int pkt_count;
	__declspec(shared gp_reg) unsigned int total_count;		<<<<<
	__declspec(shared gp_reg) unsigned int debug_on;

The init_plugin_user() Changes

The only change required is to inialize the value of total_count to 0.

	void plugin_init_user()
	{
	    if(ctx() == 0)	// only thread 0 should do the initialization
	    {
		pkt_count = 0;
		total_count = 0;					<<<<<
		debug_on = 1;

		sleep(timeout);
		helper_plugin_cntr_zero( 0 );
	    }
	}

The handle_pkt_user() Changes

The handle_pkt() function is called whenever one of the six packet handling threads gets a packet. That function calls handle_pkt_user() to do user-specific processing.

If we want to output a debug message any time that the value of total_count is incremented to a value that is evenly divisible by 10, we will have to modify the handle_pkt_user() function so that it:

• Increments total_count, and
• Outputs the value of total_count along with that of pkt_count when debug_on is true and total_count%10 is 0.

1	void handle_pkt_user() {
2	    __declspec(local_mem) char dbgmsg[28]	= "got pkt x";
3	    __declspec(local_mem) char pkt_count_str[9];
4	    __declspec(local_mem) char space_str[2]	= " ";		<<<<<

5	    ++pkt_count;
6	    ++total_count;						<<<<<
7	    if( debug_on ) {
8		onl_api_int2str( pkt_count, pkt_count_str );
9		strcat_lmem(dbgmsg, pkt_count_str);
10		if( total_count%10 == 0 ) {				<<<<<
11		    strcat_lmem( dbgmsg, space_str );			<<<<<
12		    onl_api_int2str( total_count, pkt_count_str );	<<<<<
13		    strcat_lmem(dbgmsg, pkt_count_str);			<<<<<
14		}							<<<<<
15		onl_api_debug_message(msgNextBlock, dbgmsg);
16	    }

17	    onl_api_plugin_cntr_inc(pluginId, 0);	// Incr global plugin cntr 0
18	}

Lines 6, 10 and 14 should be obvious. Line 4 declares space_str[2] to be the C-string containing the space character followed by the null byte and resides in local memory. Lines 12-13 look like lines 8-9 and concatenates the hexadecimal ASCII representation of total_count to the debug message after appending a space character. (Note that we said hexadecimal, not decimal.) Tour Of A Simple Plugin explains the purpose for the onl_api_int2str() function.

The handle_msg_user() Changes

The handle_msg() function is called whenever the control message handling thread gets a control message from the Xscale control processor. These messages are generated as a result of the RLI Plugin Table menu item Edit => Send Command to Plugin. The mycount plugin recognizes three commands: z(ero) counts, toggle d(debug) flag, and g(et) counts.

We want to modify handle_msg() so that whenever it gets the g control message, it will reply with both the value of pkt_count and total_count. This is a simple change since the idea is similar to the debug message changes that we made to handle_pkt_user() except that the counter values will be in decimal format instead of hexadecimal format.

1	void handle_msg()
2	{
3	    // assume messages are at most 8 words for now
4	    ... declarations deleted ...
5	    __declspec(local_mem) char space_str[2]	= " ";		<<<<<
6	    	... code deleted ...
7	    dl_source_message( msgFromBlock, message );
8	    	... code deleted ...
9	    if( in_msgstr[0] == 'z' ) {
10	    	... code deleted ...
11	    } else if( in_msgstr[0] == 'g' ) {
12		helper_ultodec_lmem( pkt_count, pkt_count_str );
13		strcpy_lmem( out_msgstr, pkt_count_str );
14		strcat_lmem( out_msgstr, space_str( ) );		<<<<<
15		helper_ultodec_lmem( total_count, pkt_count_str );	<<<<<
16		strcat_lmem( out_msgstr, pkt_count_str );		<<<<<
17		if( onl_api_str2intarr(out_msgstr, &message[1]) < 0 ) { return; }
18	    } else { ... code deleted ...  }
19
20	    	... code deleted ...
21	    dl_sink_message(msgNextBlock, message);
22	}

These changes are straightforward since lines 15-16 are the total_count counterparts to those for pkt_count in lines 12-13. Note though that lines 12 and 15 use the helper_ultodec_lmem() function instead of the onl_api_int2str() function used in handle_pkt_user(). That's because helper_ultodec_lmem() converts from unsigned long to ASCII decimal using local memory parameters instead of to hexadecimal.

Testing The Changes

You should now be able to test the new zzz plugin in much the same manner that you tested the mycount plugin earlier. The only difference is that now there will be an extra field in the output of the g command and there will be extra debug messages due to the total_count variable.
