NOTICE: If you used the ONL testbed prior to August 2006 and are now having difficulties connecting to the testbed, you should change some parameters in your SSH tunnel. The differences are shown in red below whenever possible.

The RLI can be run without connecting to the ONL resources if all you want to do is to specify a network and save the configuration to your local file. But if you want to actually ask for resources (File => Commit), you will need to communicate to the Central Resource Daemon (CRD) through an SSH tunnel.

The CRD communicates with the RLI through TCP port 7070 on host onlsrv. In order to commit resources, you will have to setup an SSH tunnel to onlsrv, port 7070 BEFORE you select File => Commit. In fact, we normally setup the tunnel before we even start the RLI. This page provides instructions for setting up the SSH tunnel on both Linux and Windows platforms.

The next section describes the SSH tunnel concept, and then we give three recipes for constructing the SSH tunnel. If you want to skip the concept section, just select the link below that applies to your case and you will get a recipe:

• Unix or Unix-like command line
• Windows PuTTY
• Windows SSH client from SSH Communications

The SSH Tunnel Concept

Suppose we want to run our RLI on HostA which needs to connect through our firewall to the CRD listening on port P=7070 on onlsrv.

		 -------	 ||	  --------
		|  RLI  |========XX.....P| Server |
		 -------	 ||	  --------
		  HostA	      Firewall	   onlsrv

	       (localhost)
	 	  HostA			   onlsrv
		 -------	 ||  	  --------
		|  RLI	|	 ||	 |   CRD  |
		 -------	 ||  	  --------
		   || 		 ||	  P = 7070
		   || 		 ||	     ||
		Q = 7070	 ||	     ||
		 -------	 ||	  --------
		|  ssh	|==============22|  sshd  |
		 -------	 ||	  --------
		  HostA	      Firewall	  SshdHost = onlusr
		  	  onl.arl.wustl.edu

This can be generalized to support multiple connections to multiple end hosts over the same ssh connection, but we will not describe that here.

Unix Recipe (or any command-line window on Windows)

(Note: This is known to work on RedHat 7.x and SunOS 5.8 using Open SSH and SSH Secure Shell 3.2.0 from SSH Communications Security Corp.)

• At the command line: ssh -L 7070:onlsrv:7070 onl.arl.wustl.edu
• The general form of the -L argument is: Local port number (7070); Remote host name (onlsrv); and Remote port number (7070). This part defines the tunnel going from the login host to the ONL Central Daemon.
• The command says that you want to log into onl.arl.wustl.edu and create a tunnel to port 7070 on host onlsrv where the ONL Central Resource Daemon resides. But onl.arl.wustl.edu is really a public name associated with several ONL services. In the case of SSH, you will end up on the host designated for user logins (currently onlusr).
• Often, users define an alias for this command which can be used as a shorthand for the entire command.
• Your RLI should now connect to (host='localhost', port=7070) instead of (host=onlsrv, port=7070).
• Kill the ssh client when you are done using the tunnel.
• Here is a form that uses the -f flag: ssh -f -L 7070:onlsrv:7070 onl.arl.wustl.edu
• The -f puts the ssh process into the background. Alternatively, you could use the '-fo' flag for "one shot forwarding"; i.e., the ssh client terminates when the number of forwarded connections drops to 0.

Windows PuTTY Recipe

PuTTY is a popular tool for making SSH connections that can be obtained from http://www.putty.nl. The following recipe leads you through steps for setting up an SSH tunnel to the CRD using PuTTY. When you are done, you will have a PuTTY entry that can be used without reentering the tunnel details each time you run the PuTTY tool.

• Click on the PuTTY desktop icon. You will get the Session window shown below.

• To define the tunnel details, select the Connection => SSH => Tunnels Category item. You will get a window that allows you to specify the details of the SSH tunnel.

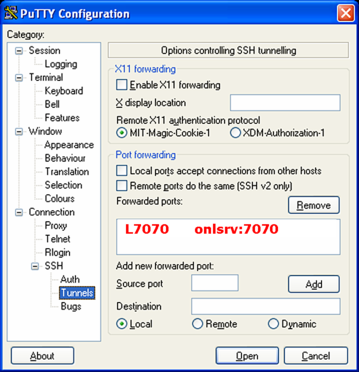

• Fill in the Source port and Destination fields as shown below. Enter 7070 in the Source port field, and enter onlsrv:7070 in the Destination field. Now, select Add to add your entry to the list of forwarded ports. Note that Local is marked. This setup means that the RLI messages that will go to port 7070 at the localhost will be tunneled over the SSH connection to port 7070 at host onlsrv. (Note that Remote should NOT be marked since that would allow a remote user to use your SSH tunnel.)

• Now we move on to associating the label rli (or whatever you would like to call this setup) with the tunnel that you just defined. This is called defining a session in PuTTY.
  Return to the PuTTY Session window by selecting the Session Category. Fill in the Host Name and Saved Sessions fields. Enter onl.arl.wustl.edu in the Host Name field, and enter rli in the Saved Sessions field. Then, select Save to save the entry. Now, we can attempt to make the tunneled SSH connection by selecting Open or exit PuTTY and make the SSH connection at a later time.

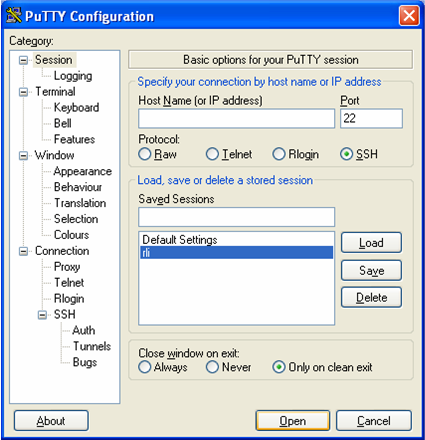

• If we exit PuTTY and then run it at a later time, you will get the following window which shows the rli entry that we defined above. The tunneled SSH connection can now be made by selecting rli and then selecting Open or just double clicking the rli entry.

Windows SSH Client Recipe

Note 1: The syntactic details may vary from one tool to another.
Note 2: This is known to work for SSH clients on Windows 2000 and Windows XP using SSH Secure Shell 3.2.0 from SSH Communications Security Corp.

The two figures below show how I have setup my tunnel. The menu item is labeled rli and the tunnel name is proxy.

• Start your ssh client
• Click "Profiles => Add Profile" to add a new connection profile which you will name and later edit. I have named my profile rli.

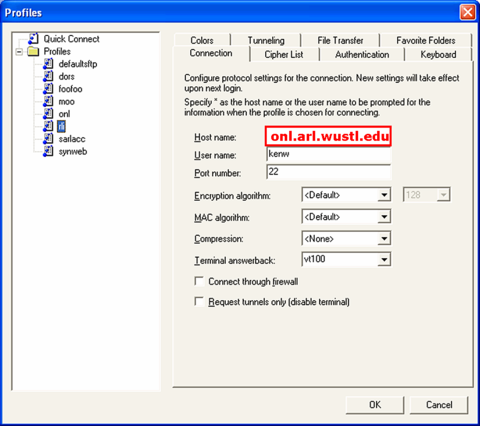

• Click "Profiles => Edit Profile" and you will see something like the figure below. Here, I have already created the rli profile.
• Fill out the Connection tab so that the Hostname is onl.arl.wustl.edu, the host running the CRD.
• Click the "Tunneling" tab; click the "Add button; and then fill in the dialog box.

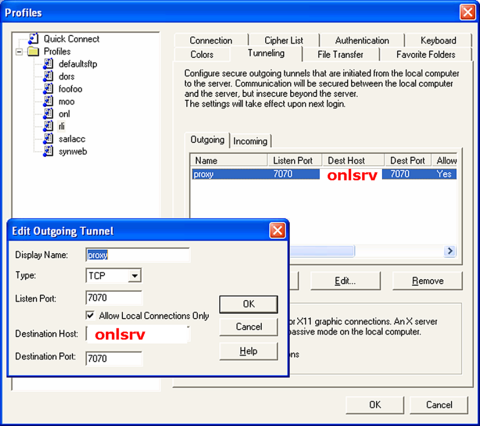

  There are six columns: Name, Listen Port, Dest Host, Dest Port, Allow, Type. For example, the figure below shows:
  • "Display Name" = proxy
  • "Listen Port" = 7070
  • "Destination Host" = onlsrv
  • "Destination Port" = 7070
  • Check "Allow Local Connections Only" (THIS IS VERY IMPORTANT)
  • "Type" = TCP

• Click "OK"
• Your RLI should now connect to the CRD (running on onlsrv and listening on port 7070) through host='localhost', port=7070.

Comments and Caveats

• Caveat 1: Any user can connect to the client-side of the tunnel from the client host.
• Caveat 2: Do NOT use the -g flag in Unix or uncheck "Allow Local Connections Only" in Windows. This will allow anyone who can connect to the client host at port Q to use your tunnel.

References

• ssh manual pages
• SSH, The Secure Shell, The Definitive Guide by Daniel J. Barrett and Richard E. Silverman, O'Reilly, 2001 (Chapter 9)
• Type "ssh port forwarding" into Google or some other search engine.
